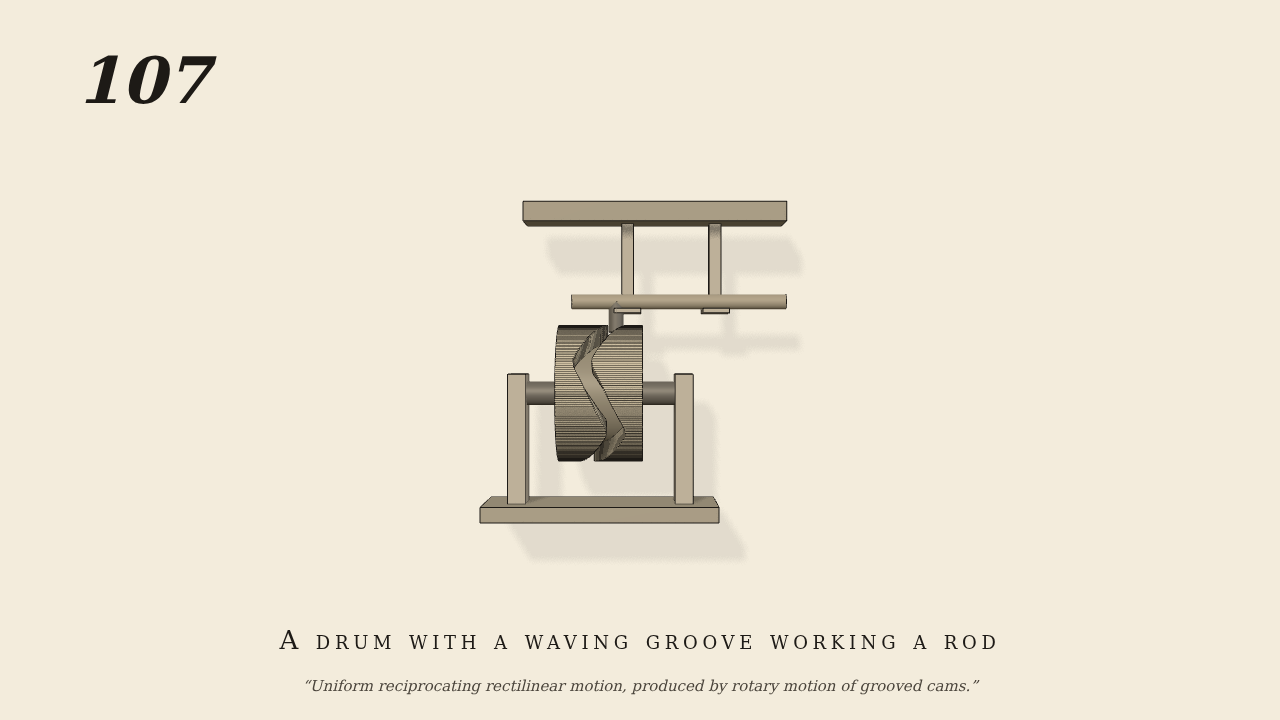

106 and 107. Uniform reciprocating rectilinear motion, produced by rotary motion of grooved cams.
Only the input is driven; every other part of this model moves by physics (MuJoCo), and its ratios are measured. Run it live, change its parameters, or switch the friction off to see the output stop.
- Modelled as
- As No. 106, but the endless groove waves three strokes each way in a turn, at a steady 2.29 cm to the radian of the drum's angle (the turns rounded); walls 216 convex pieces. The groove is 0.03 cm clear of the 1 cm pin square to its walls, so the groove drives the rod both ways by real contact. The drum (10 rpm) is the only driven joint.
- Measured
- Rod slope -0.0224/+0.0229/+0.0229/-0.0229/+0.0229/+0.0229 m/rad vs +/-0.02292 (r2 0.998-1.000); stroke 2.3 cm; penetration 0.10 mm.
- Notes
- Neg control: pin out of contact -> the rod stands.
